WE BUILD COMPETITION CARS

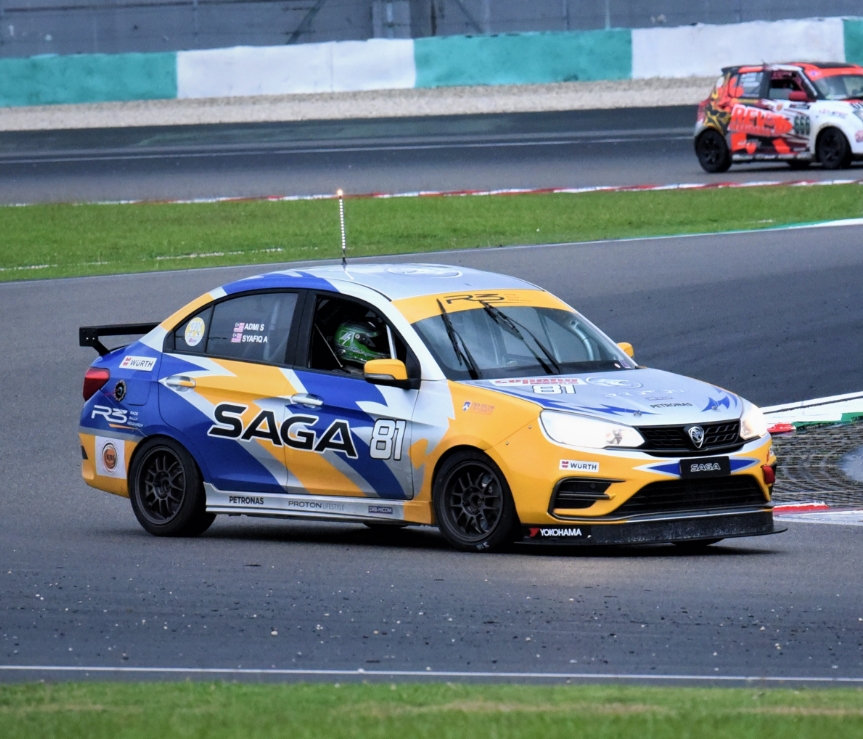

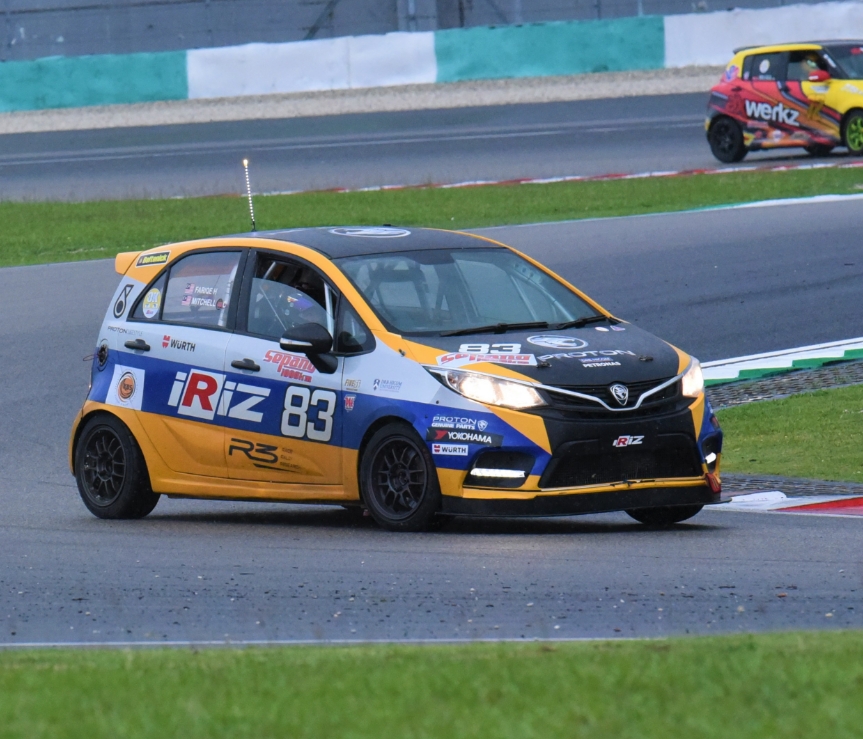

We turn regular road-going Proton cars like the Saga and IRIZ into purpose-built race cars. The key areas of expertise in building a competitive platform for motorsports is in chassis, powertrain and electronics. Focusing on these key areas allows us to develop a well-balanced engineering solution. These race cars are a physical demonstration of the traits that are found in all Proton cars.
SPECIFICATIONS
POWERTRAIN
ENGINE & TRANSMISSION
Engine:
- R3 CAMPRO 1597cc 16 Valve Transmission
- 5 speed c Slip Differential
- 1.5 Way Limited Slip Differential
BHP
190
LAYOUT
In-Line 4, Transverse FF
BORE X STROKE (MM)
76 X 88
ENGINE MANAGEMENT
Motec M800 + ADL Dash 2 Data Logger
CHASSIS
BODY SHELL
R3 Engineered Lightweight Bodyshell + 6 Pt Rollcage
SUSPENSION
Ohlins TTX
Front: McPherson Strut with Adjustable Geometry
Rear: Multilink with Fully Adjustable Geometry
Low Friction Spherical Bearing Lower & Trailing Arms
BRAKES
Front: Alcon 4-Pot Caliper / 294mm Ventilated Dis
Rear: Alcon 2-Pot Caliper / 295mm Solid Disc
Driver Adjustable Front / Rear Bias
WHEELS
R3 Lightweight Wheels 15X7
TYRES
Yokohama AD08R 195/50/15 (2017 Organiser control tyre)
FUEL SYSTEM
High Pressure Regulated Returnless
ATL FIA FT3 60l Fuel Tank with Dry-Break Refueling
DIMENSION & WEIGHT
OVERALL LENGTH x WIDTH x HEIGHT (MM)
4436 x 1786 x 1524
WHEELBASE (MM)
2650
WEIGHT (KG)
1,050
BODY
BODY KIT
R3 Front Splitter
R3 LOW DRAG BLANKINGS
R3 Custom Brake Cooling Ducts
INTERIOR
STEERING WHEEL
Momo
SEATS
Recaro TS-G
SAFETY HARNESS
Beltnick 5 point
WHEELS
R3 Lightweight Wheels 15X7
PEDALS
Willwood Brake & Clutch Pedals
SPECIFICATIONS
POWERTRAIN
ENGINE & TRANSMISSION
Engine:
- R3 CAMPRO 1597cc 16 Valve Transmission
- 5 speed c Slip Differential
- 1.5 Way Limited Slip Differential
BHP
190
LAYOUT
In-Line 4, Transverse FF
BORE x STROKE (MM)
76 X 88
ENGINE MANAGEMENT
Motec M800 + ADL Dash 2 Data Logger
CHASSIS
BODY SHELL
R3 Engineered Lightweight Bodyshell + 6 Pt Rollcage
SUSPENSION
Ohlins TTX
Front: McPherson Strut with Adjustable Geometry
Rear: Multilink with Fully Adjustable Geometry
Low Friction Spherical Bearing Lower & Trailing Arms
BRAKES
Front: Alcon 4-Pot Caliper / 294mm Ventilated Dis
Rear: Alcon 2-Pot Caliper / 295mm Solid Disc
Driver Adjustable Front / Rear Bias
WHEELS
R3 Lightweight Wheels 15X7
TYRES
Yokohama AD08R 195/50/15 (2017 Organiser control tyre)
FUEL SYSTEM
High Pressure Regulated Returnless
ATL FIA FT3 60l Fuel Tank with Dry-Break Refueling
DIMENSION & WEIGHT
OVERALL LENGTH x WIDTH x HEIGHT (MM)
4331 x 1689 x 1491
WHEELBASE (MM)
2465
WEIGHT (KG)
1,050
BODY
BODY KIT
R3 Front Splitter
R3 LOW DRAG BLANKINGS
R3 Custom Brake Cooling Ducts
INTERIOR
STEERING WHEEL
Momo
SEATS
Recaro TS-G
SAFETY HARNESS
Beltnick 5 point
PEDALS
Willwood Brake & Clutch Pedals
